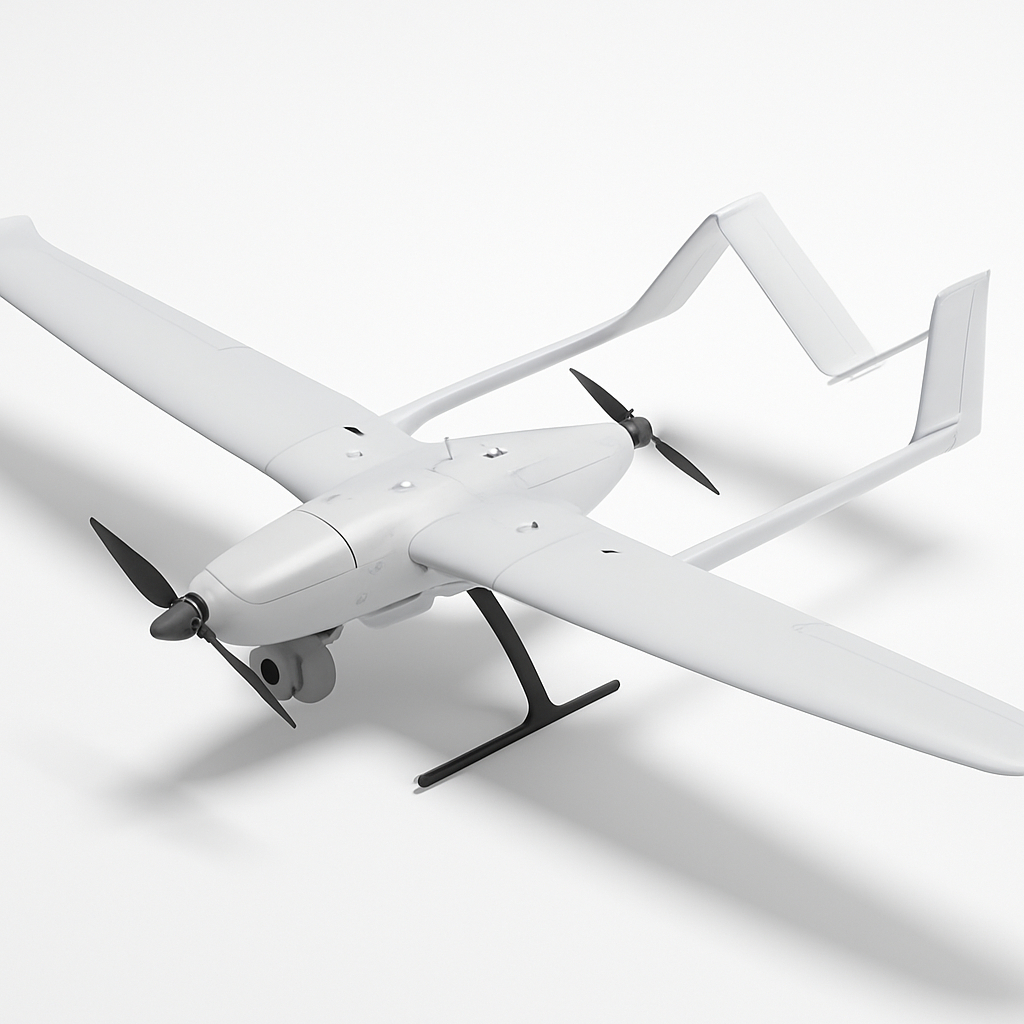

JOUAV CW-15

Overview

The JOUAV CW-15 represents a significant advancement in commercial drone technology, combining the operational flexibility of vertical takeoff and landing (VTOL) with the efficiency and range of fixed-wing aircraft. This hybrid design makes it particularly well-suited for large-scale surveying, mapping, and inspection operations where traditional multirotor drones fall short due to flight time limitations, and conventional fixed-wing drones are impractical due to space constraints.

Designed primarily for professional surveying companies, government agencies, and enterprise clients, the CW-15 excels in applications requiring extensive area coverage with high precision. Its ability to transition from vertical flight to horizontal cruise mode allows operators to work in confined spaces while maintaining the efficiency needed for large-area missions. The drone's robust construction and advanced flight systems make it suitable for challenging environmental conditions and mission-critical operations.

The CW-15 positions itself as a premium solution in the commercial drone market, targeting users who require maximum efficiency and reliability rather than budget-conscious operators. Its sophisticated design and capabilities reflect JOUAV's focus on professional-grade equipment for demanding commercial applications.

Key Specifications

• Maximum flight time: 150 minutes (2.5 hours)
• Cruise speed: 65 km/h (40 mph)
• Maximum wind resistance: 12 m/s (27 mph)
• Service ceiling: 4,500 meters above sea level
• Maximum takeoff weight: 15 kg (33 lbs)
• Payload capacity: 2.5 kg (5.5 lbs)
• Coverage area: Up to 1,000 hectares per mission
• Operating temperature: -20°C to +50°C (-4°F to +122°F)
• Protection rating: IP54 weather resistance
• GNSS compatibility: GPS, GLONASS, BeiDou, Galileo
• RTK positioning accuracy: Horizontal ±1cm + 1ppm, Vertical ±2cm + 1ppm
• Communication range: Up to 50 km (line of sight)
• Camera options: 42MP full-frame, 61MP medium format, multispectral, thermal imaging
• Ground sample distance: Up to 1.2 cm at 120m altitude
• Wingspan: 2.6 meters
• Body length: 1.25 meters
• Landing gear: Retractable for improved aerodynamics

Pricing & Configuration

The JOUAV CW-15 follows an enterprise pricing model with costs varying significantly based on configuration, payload options, and included services. Pricing is typically provided upon request and includes consultation to determine optimal configuration for specific use cases. The base system generally includes the aircraft, ground control station, batteries, and basic training, while specialized sensors, extended warranties, and comprehensive training programs are available as additional options.

Typical configurations include surveying packages with high-resolution RGB cameras, agricultural monitoring setups with multispectral sensors, and inspection variants with thermal imaging capabilities. Enterprise customers often benefit from volume pricing, extended support agreements, and customization options to meet specific operational requirements.

Pros and Cons

Pros:

• VTOL capability eliminates runway requirements and enables operations in confined spaces
• Exceptional flight time of up to 2.5 hours maximizes operational efficiency
• Large coverage capacity of up to 1,000 hectares per mission reduces operational costs
• RTK-enabled precision positioning ensures survey-grade accuracy
• Robust weather resistance allows operations in challenging conditions
• Multiple payload options support diverse mission requirements
• Professional-grade construction ensures reliability and longevity

Cons:

• High acquisition cost limits accessibility for smaller organizations
• Complex operation requires extensive pilot training and certification
• Larger size and weight compared to multirotor alternatives affects portability
• Limited payload flexibility compared to dedicated multirotor platforms
• Higher maintenance requirements due to complex VTOL mechanisms

Who Should Buy This Drone?

The JOUAV CW-15 is ideal for established surveying companies, engineering firms, and government agencies that regularly conduct large-scale mapping or inspection projects. Organizations that can justify the investment through high-volume operations or premium service offerings will find the drone's capabilities most beneficial. It's particularly suitable for companies working in remote areas where the extended flight time and range provide significant operational advantages.

Large agricultural operations and precision agriculture service providers will also benefit from the CW-15's ability to cover extensive farmland efficiently. Mining companies, oil and gas operators, and infrastructure inspection specialists who require regular monitoring of large facilities or linear assets represent additional target markets.

Smaller drone service providers or those just entering the commercial market may find the CW-15 beyond their immediate needs and budget constraints. However, growing companies with ambitious expansion plans should consider the drone's capabilities as a differentiator in competitive markets.

Final Verdict

The JOUAV CW-15 stands out as a premium solution for organizations requiring maximum efficiency and coverage in their drone operations. While the significant investment and operational complexity may limit its appeal to budget-conscious users, the drone's exceptional performance capabilities justify the cost for high-volume commercial operations. Its VTOL design successfully addresses many limitations of traditional fixed-wing drones while maintaining the efficiency advantages that multirotor systems cannot match.

For organizations with the resources and operational requirements to fully utilize its capabilities, the CW-15 represents an excellent investment that can provide significant competitive advantages and operational cost savings over time. The drone's professional-grade construction and comprehensive support ecosystem make it a reliable choice for mission-critical applications where performance and reliability are paramount.
