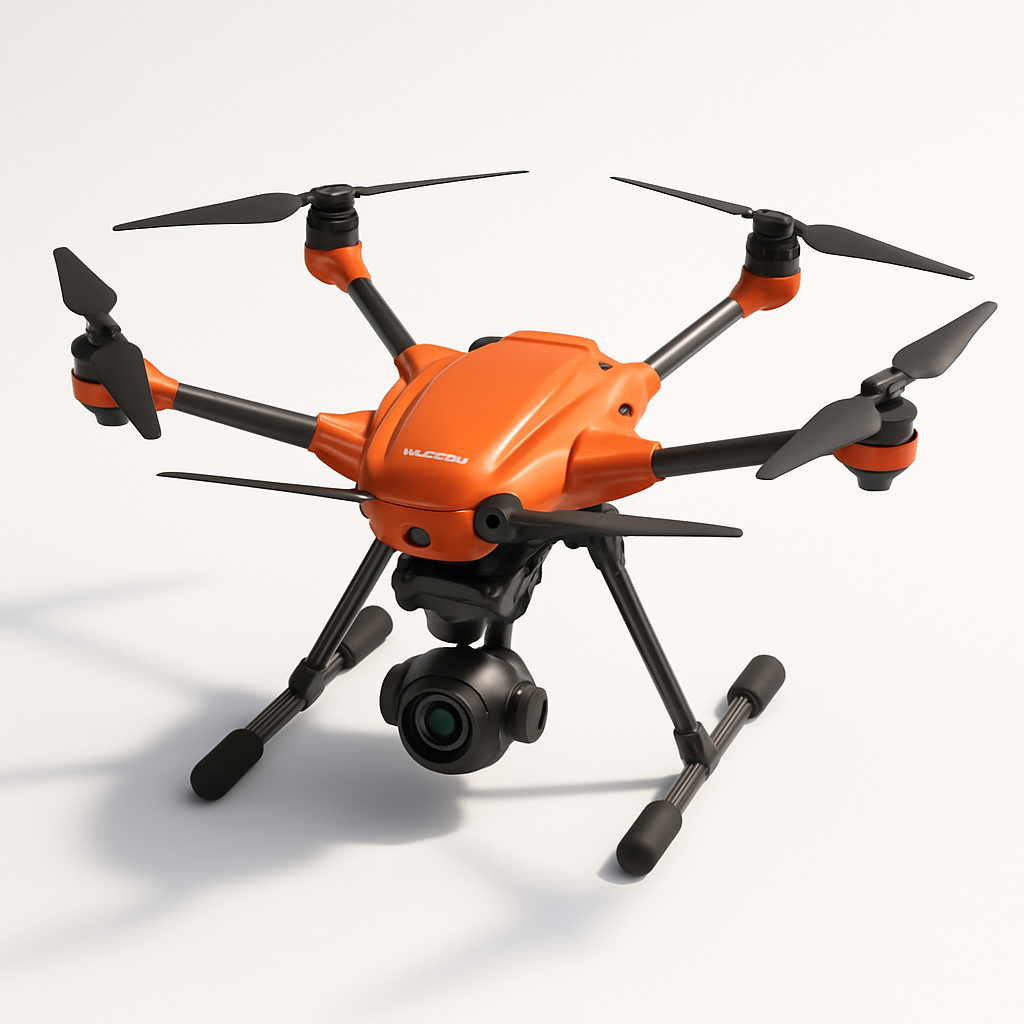

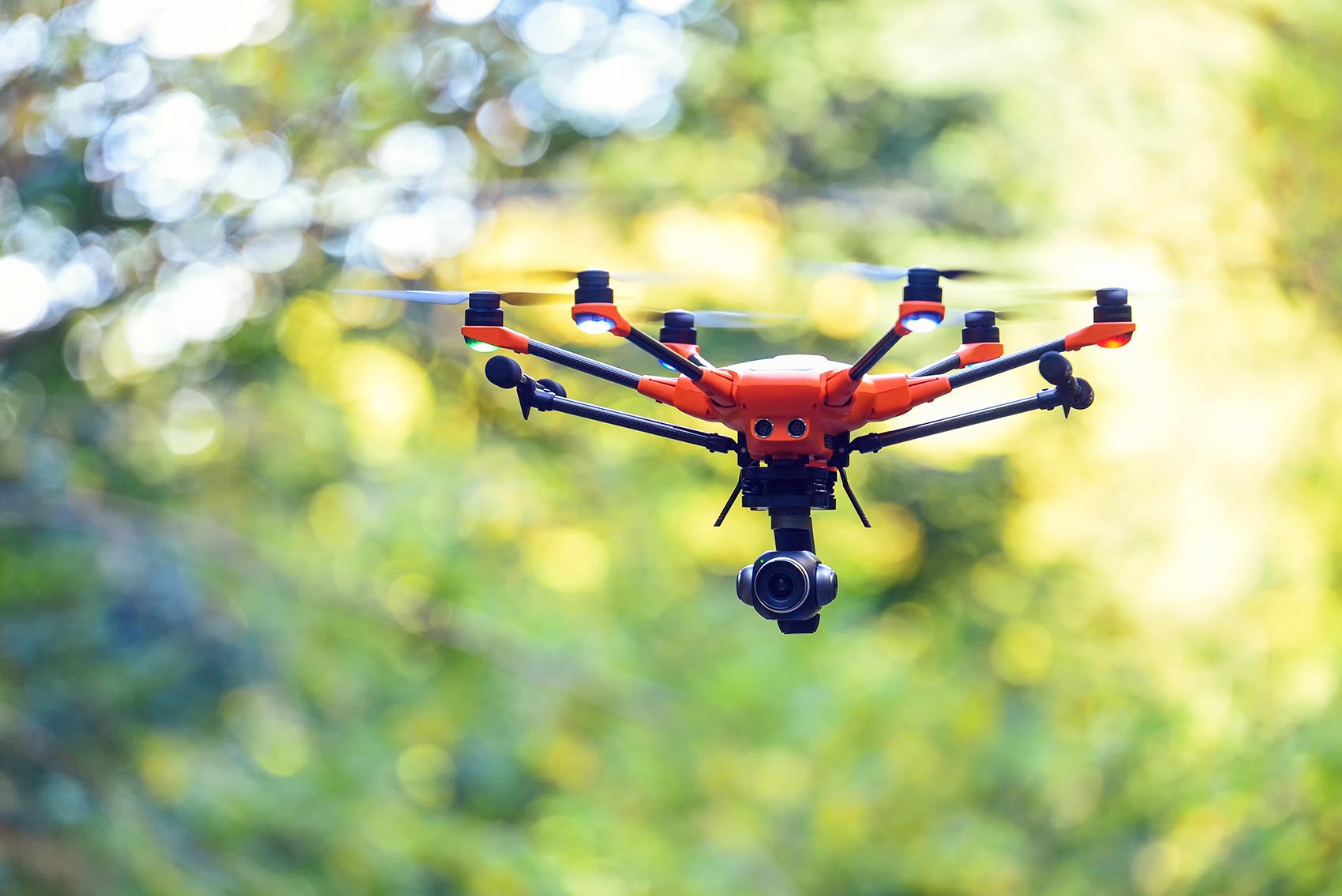

Yuneec H520E

Overview

The Yuneec H520E represents Yuneec's flagship commercial drone platform, specifically engineered for professional inspection, surveying, and public safety operations. As a hexacopter design, it offers inherent redundancy that allows continued flight even if one motor fails, making it ideal for critical missions where flight safety is paramount. The H520E builds upon Yuneec's commercial aviation heritage, incorporating enterprise-grade components and manufacturing standards.

This platform distinguishes itself through its modular approach to payload integration and robust flight performance characteristics. The H520E is particularly well-suited for infrastructure inspection, search and rescue operations, and detailed surveying work where reliability and payload flexibility are essential. Its professional-grade construction and comprehensive software ecosystem make it a serious contender in the commercial drone market, though it faces stiff competition from DJI's enterprise offerings.

Key Specifications

• Maximum flight time: 28 minutes (depending on payload)
• Maximum speed: 17 m/s (38 mph)
• Wind resistance: Up to 12 m/s (26.8 mph)
• Operating temperature: -10°C to 40°C (14°F to 104°F)
• Maximum payload weight: 1.8 kg (3.97 lbs)
• Takeoff weight: 1.85 kg (4.08 lbs) without payload
• Dimensions: 520mm motor to motor
• IP rating: IP43 weather resistance
• GPS accuracy: ±1.5m horizontal, ±3m vertical
• RTK compatibility: Yes, with optional RTK module
• Transmission range: Up to 1.6 km (1 mile)
• Camera options: E90, E50, ET, CGOET thermal cameras
• Battery: 5400mAh LiPo, hot-swappable
• Obstacle avoidance: Ultrasonic sensors (bottom)
• Control frequency: 2.4 GHz
• Video transmission: 720p real-time

Pricing & Configuration

The Yuneec H520E follows a modular pricing structure starting at approximately $8,500 for the base aircraft with ST16S controller. Complete packages with cameras typically range from $12,000 to $18,000 depending on the selected payload configuration. The E90 camera package (with 1-inch sensor) adds roughly $3,500, while the thermal ET package can increase costs by $8,000 or more. Additional accessories like extra batteries ($300 each), RTK module ($2,000), and professional cases add to the total investment.

Yuneec offers various bundle configurations targeting specific industries, including inspection packages, surveying bundles, and public safety kits. The modular approach allows operators to start with basic configurations and expand capabilities over time, though this can result in higher long-term costs compared to integrated solutions from competitors.

Pros and Cons

Pros:

• Hexacopter design provides motor redundancy for enhanced safety
• Modular payload system allows easy camera swapping
• Excellent flight time performance up to 28 minutes
• Professional build quality with weather resistance

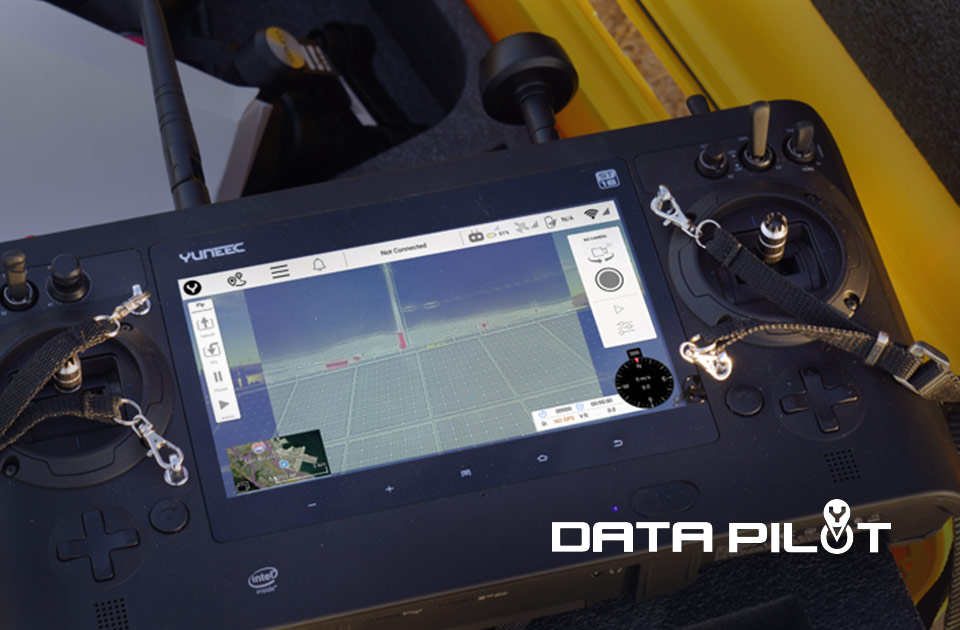

• Comprehensive DataPilot flight planning software included
• Hot-swappable batteries for extended operations
• Strong wind resistance capabilities

Cons:

• Higher acquisition cost compared to similar DJI models
• Limited third-party payload ecosystem
• Heavier and larger than equivalent quadcopter designs
• ST16S controller interface less intuitive than competitors
• Smaller service network compared to DJI
• Limited availability of replacement parts in some regions

Who Should Buy This Drone?

The Yuneec H520E is best suited for professional operators who prioritize flight safety and reliability over cost considerations. Infrastructure inspection companies, utilities, public safety agencies, and surveying firms will appreciate the hexacopter's redundancy and professional-grade construction. Organizations that require multiple payload types and can benefit from the modular camera system should strongly consider this platform.

This drone is particularly appropriate for operators in regions with strong winds or challenging weather conditions, thanks to its robust flight characteristics and weather resistance. Companies that perform critical missions where drone failure could have serious consequences will value the motor redundancy that the hexacopter design provides.

However, budget-conscious operators or those seeking the largest ecosystem of accessories and third-party support might find better value in DJI's enterprise offerings. Similarly, operators who prioritize portability and ease of transport may prefer lighter quadcopter alternatives.

Final Verdict

The Yuneec H520E delivers on its promise of professional-grade reliability and safety, making it a solid choice for commercial operators who can justify the premium pricing. The hexacopter design provides genuine safety advantages for critical missions, and the modular payload system offers operational flexibility that many competing platforms lack. Flight performance is excellent, with industry-leading flight times and strong wind resistance.

However, the H520E faces challenges in a market increasingly dominated by DJI's enterprise solutions, which often provide similar capabilities at lower costs with broader ecosystem support. The higher price point and more limited payload options may deter some potential buyers, particularly those just entering the commercial drone market.

Overall, the H520E earns a solid recommendation for professional operators who can leverage its safety features and don't mind paying a premium for Yuneec's engineering approach. It represents a mature, capable platform that delivers reliable performance for demanding commercial applications.
